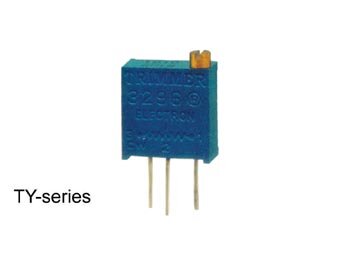

CERMET TRIMMER MULTI-TURN 500E

Velleman - E500TY

Kenmerken E500TY
Professional multiturn trimming potentiometers. The cermet resistance element offers stability and high resolution. The trimmer is actuated by a screw with a slipping clutch at each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.- MEC CITEC 4290Y
- vertical mounting
- vertical adjustment
- pin layout: triangle
- bereik: 100E to 1M (E3 series)
Specificaties E500TY
- vermogen: 0.5W at 70°C
- tolerantie: ±10%
- working voltage: 300Vdc max.
- rotatie:
 - elektrisch circuit: 22 turns nom.
 - mechanisch: 25 turns nom.

EAN-code: 5410329755485
