CERMET-TRIMMER-MULTI-TURN-50K-(K050TW)
CERMET TRIMMER MULTI-TURN 50K (K050TW)
0 Review | Review toevoegen
CERMET TRIMMER MULTI-TURN 50K Velleman - K050TW Kenmerken K050TW Professional multiturn trimming potentiometers. The cermet resistance element offers stability and high resolution. The trimmer...

Artikelnummer

K050TW

Verzendkosten

€ 9,95

€ 2,35
Prijs per 1.00

Voorraad :

Aantal:
Bestellen

Op verlanglijst

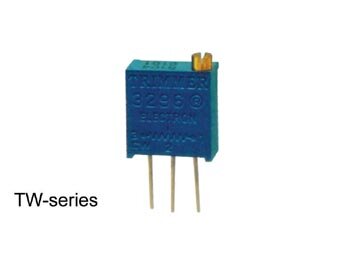

CERMET TRIMMER MULTI-TURN 50K

Velleman - K050TW

Kenmerken K050TW
Professional multiturn trimming potentiometers. The cermet resistance element offers stability and high resolution. The trimmer is actuated by a screw with a slipping clutch at each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.- MEC CITEC 4290W
- vertical mounting
- vertical adjustment
- pin layout: line
- bereik: 10E to 5M (E3 series)
Specificaties K050TW
- vermogen: 0.5W at 70°C
- tolerantie: ±10%
- working voltage: 300Vdc max.
- rotatie:
 - elektrisch circuit: 22 turns nom.
 - mechanisch: 25 turns nom.

EAN-code: 5410329755799
