HERSTELBARE-ZEKERING-3.75-7.5A-/-60Vdc-(PSWRX375)
HERSTELBARE ZEKERING 3.75-7.5A / 60Vdc (PSWRX375)
0 Review | Review toevoegen
5 stuks HERSTELBARE ZEKERING 3.75-7.5A / 60VDC Velleman - PSWRX375 Kenmerken PSWRX375 De PTC weerstand wordt automatisch gereset en beschermt uw schakeling doorlopend.- lage houdstroom -...

Artikelnummer

PSWRX375

Verzendkosten

€ 9,95

€ 4,00
Prijs per 5.00

Voorraad :

Aantal:
Bestellen

Op verlanglijst

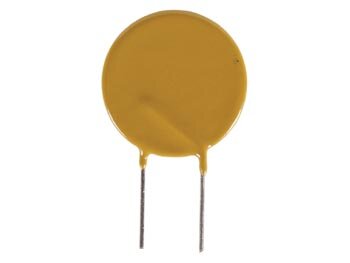

5 stuks HERSTELBARE ZEKERING 3.75-7.5A / 60VDC

Velleman - PSWRX375

Kenmerken PSWRX375
De PTC weerstand wordt automatisch gereset en beschermt uw schakeling doorlopend.- lage houdstroom
- solid state
- radiale aansluitingen
Specificaties PSWRX375
- houdstroom Ih (A): 3.75
- schakelstroom It (A): 7.50
- max. schakelvertraging (bij 5 x Ih): 24.0
- max. stroom Imax (A): 40
- nom. spanning Vmax (Vdc): 60
- typ. vermogen Pd (W): 3.20
- weerstandstolerantie:
 - Rmin (ohm): 0.03
 - Rmax. (1 uur na schakeling) (ohm): 0.08
- afmetingen:
 - A (max): 28.5
 - B (max): 33.5
 - C (typ): 10.2
 - D (min): 7.6
 - E (max): 3.1
 - F (typ): 1.4
- werkstroom: 100mA ~ 3.75mA
- max. stroom: 40A
- max. spanning: 60V
- temperatuurbereik: -40°C tot +85°C
- materialen:
 - aansluitingen: vertind koper
 - isolatie: brandvertragend epoxy volgens richtlijn UL-94V-O

EAN-code: 5410329214654
